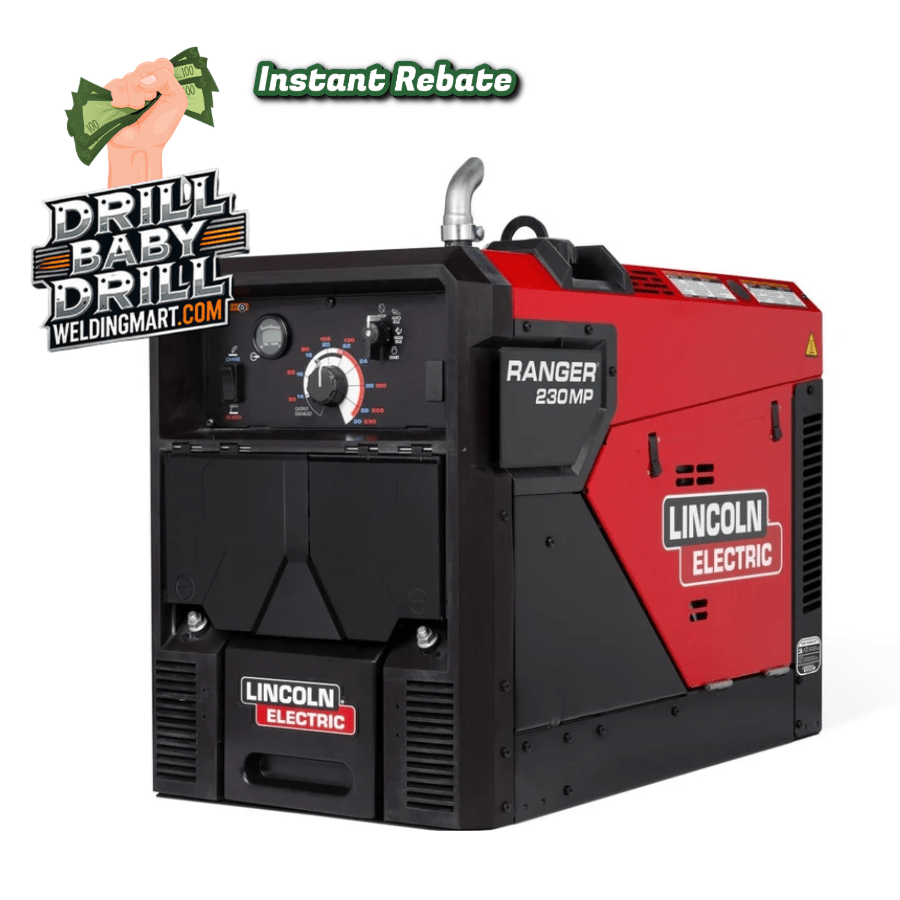

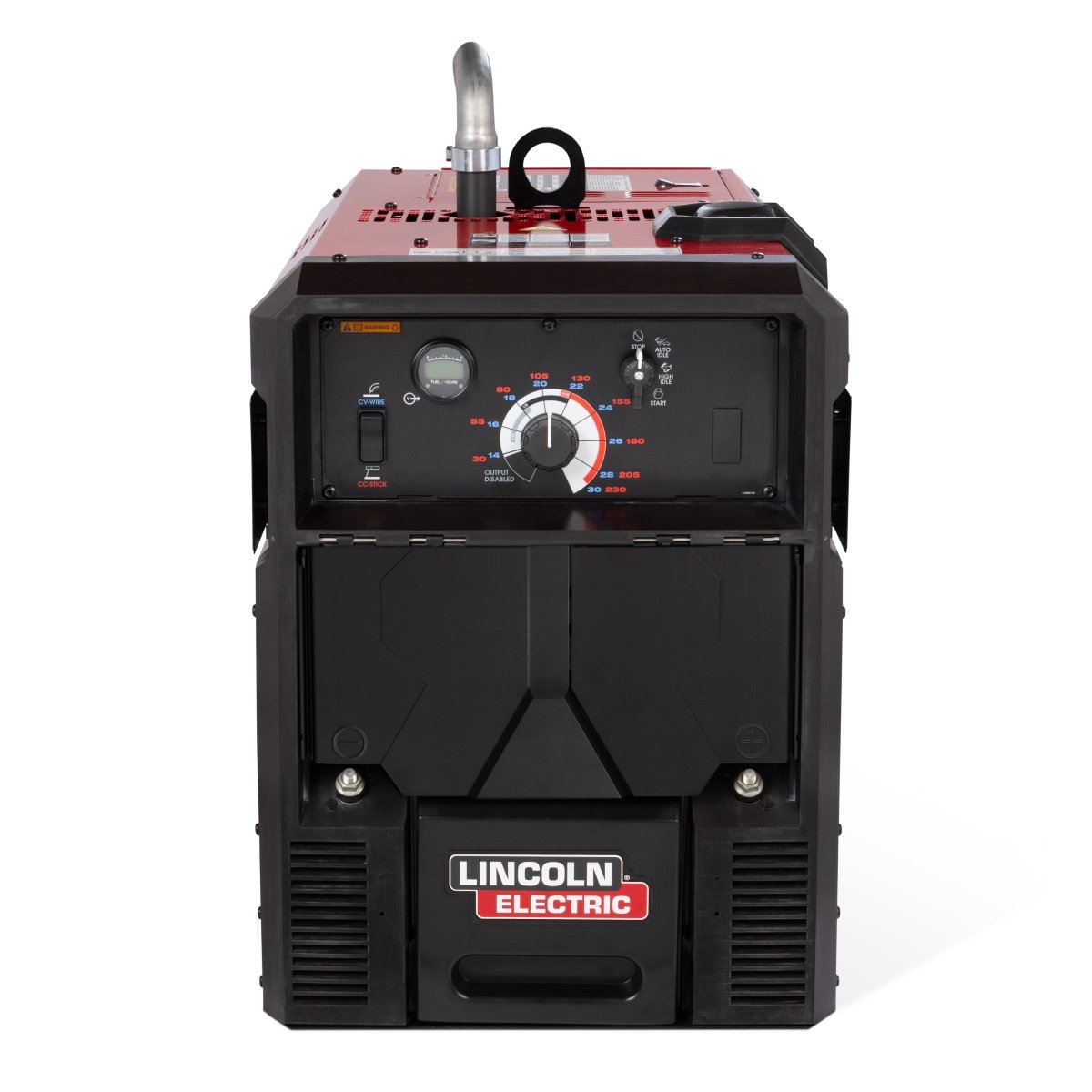

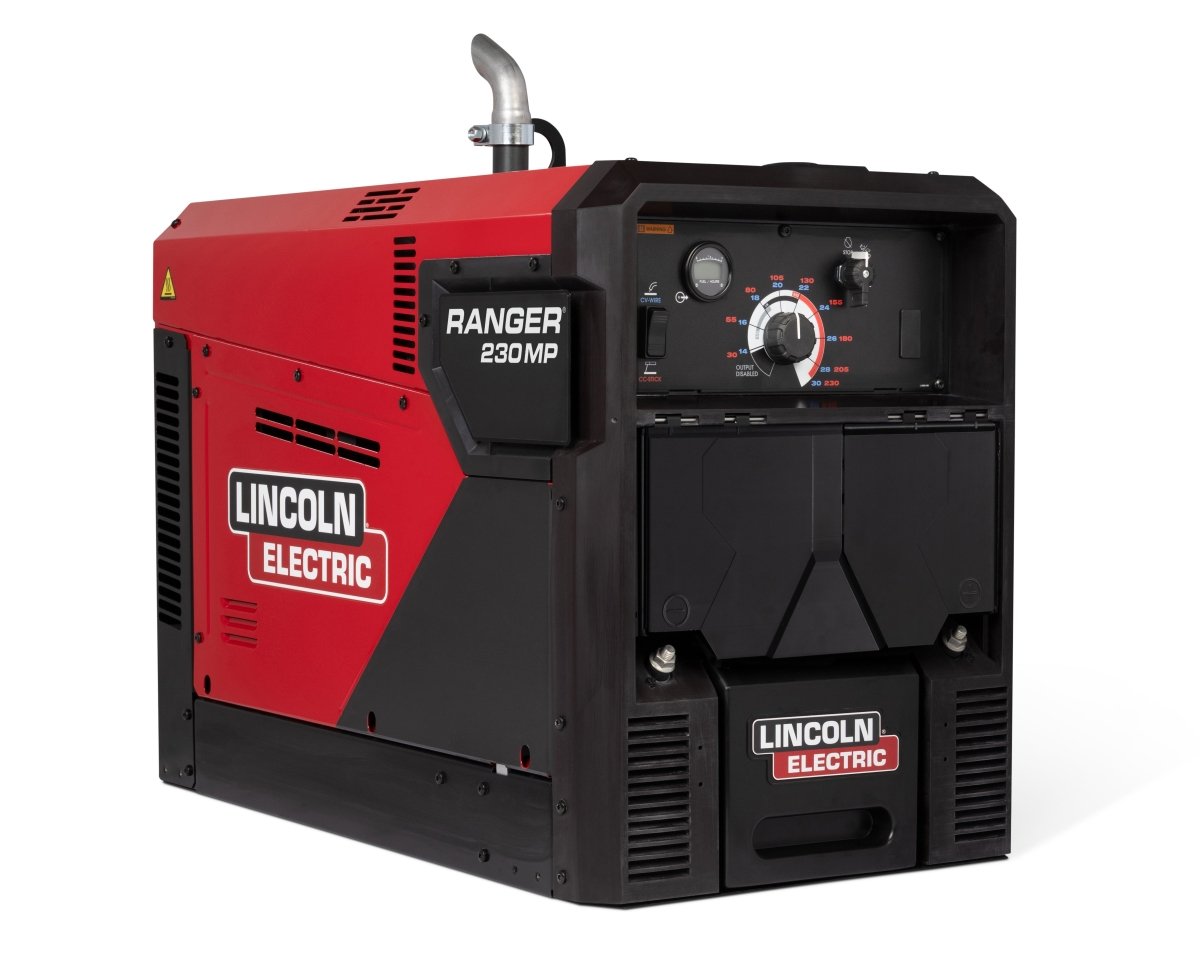

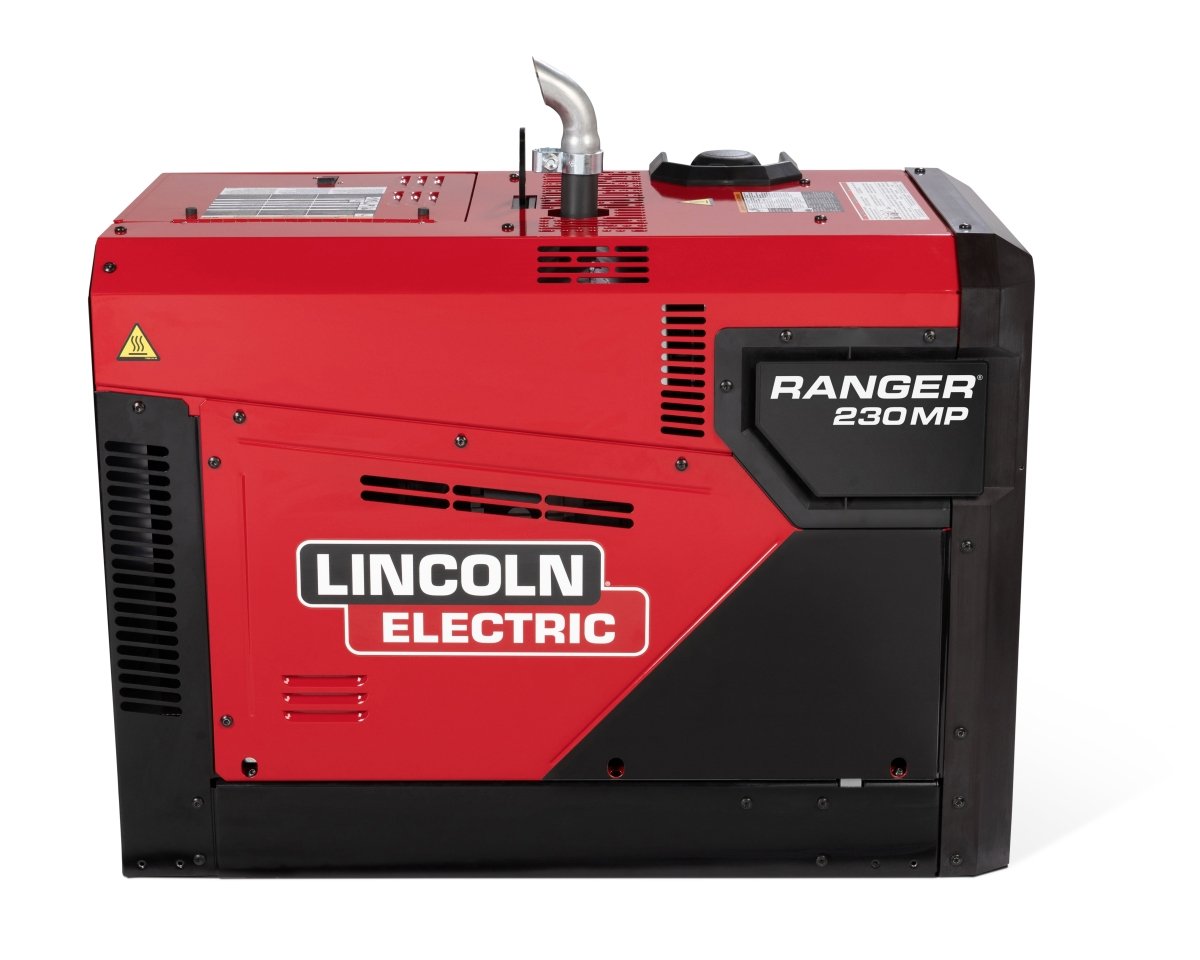

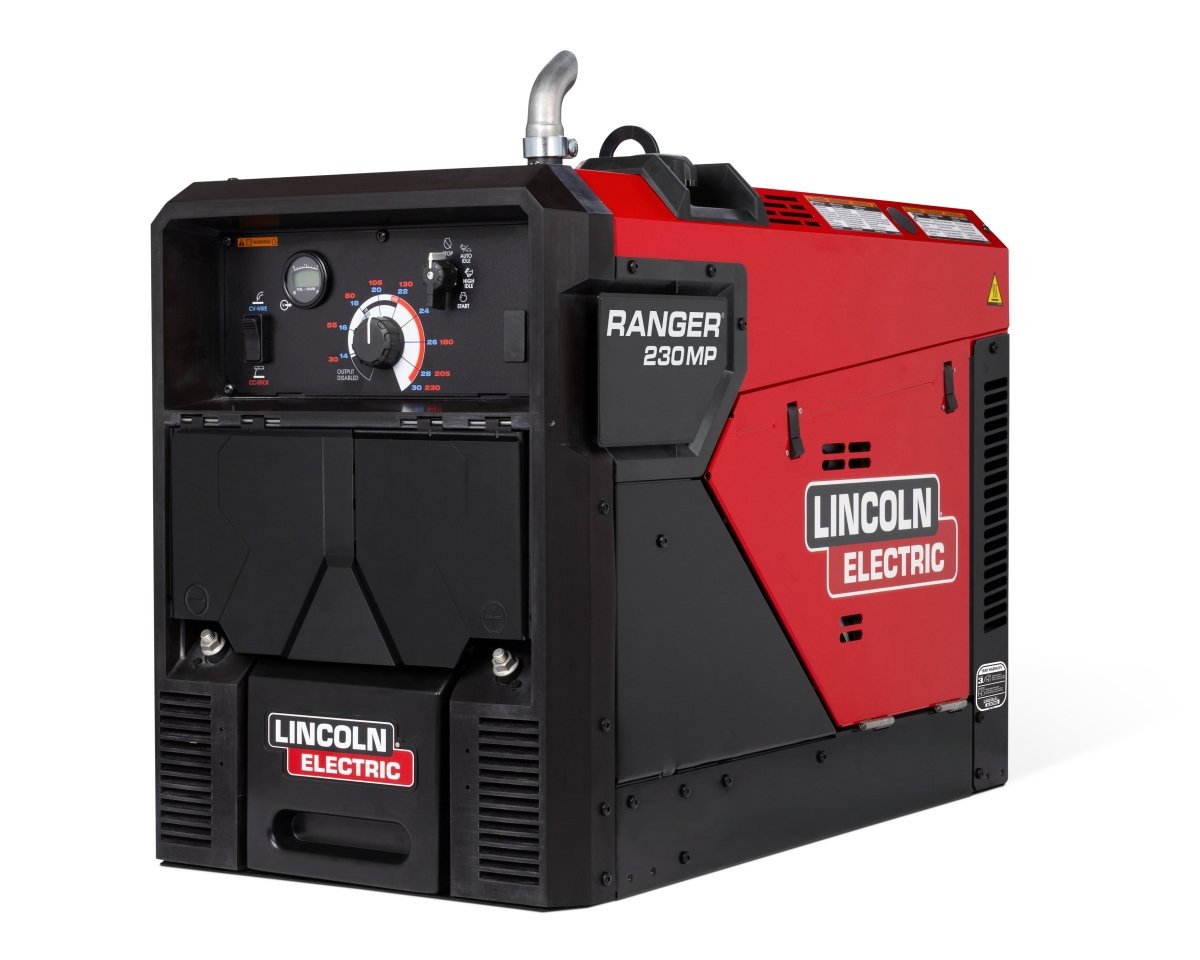

Lincoln Ranger 230MP – K5938-1

The Lincoln Ranger 230MP K5938-1 is a compact gasoline engine-driven welder generator for construction and farm work. Lincoln lists MIG, Stick, and Flux-Cored processes, a one-knob control, auto-idle, and GFCI-protected receptacles.
Key Specifications
Welding output
204A/28.2V CC/Stick and 227A/25.4V CV/Wire at 100% IEC rating; 230A/25V non-IEC
Output range
35–230A CC; 15–30V CV; 85VDC maximum OCV
Generator output
10,500W peak; 9,500W continuous; 120/240V AC, single phase
Engine
Rehlko CH730, 23.5 hp, 725 cc, gasoline
Fuel system / capacity
Electronic choke, carburetor, electric fuel pump; 11 gal (42 L); maximum 10% ethanol
Dimensions
26.4 × 20 × 36.4 in; 33.1 in to top of exhaust pipe
Net weight
426 lb (194 kg)
Published processes
MIG, Stick, Flux-Cored
Manufacturer source: Lincoln Electric product literature for K5938-1.
Recommended Use Cases
Farm and ranch repair where utility power is not available
Construction and field maintenance requiring both welding output and 120/240V AC power
Stick or compatible wire-welding setups within the published CC/CV ranges
Ordering Guidance
Order by the exact product number K5938-1 and confirm the Gasoline configuration. Match the published output range and generator rating to the job, then confirm required welding leads, wire-feeding equipment, fuel-system components, and other accessories before checkout. No accessory is represented as included unless the live offer explicitly says so.
Compare Ranger Models
Lincoln Ranger 260MP K5937-1
Lincoln Ranger 260MP LPG K5939-1
Lincoln Ranger 300MP LPG K5940-1
Browse Lincoln Ranger engine-driven welders, compare the full engine-driven welders and welder generators, or read the engine-driven welder buyer’s guide.
Frequently Asked Questions
What welding processes does the Ranger 230MP support?
Lincoln lists MIG, Stick, and Flux-Cored welding for K5938-1. Match any wire feeder, gun, cables, and consumables to the intended process before ordering.
What is the Ranger 230MP generator rating?
The published generator rating is 10,500 watts peak and 9,500 watts continuous at 120/240V AC, single phase.
What is the rated welding output?
Lincoln publishes 204A/28.2V for CC/Stick and 227A/25.4V for CV/Wire at 100% IEC rating, plus a 230A/25V non-IEC rating.
What fuel does K5938-1 use?
K5938-1 uses gasoline with an electric fuel pump. Lincoln lists an 11-gallon tank and a maximum 10% ethanol blend.
What should I confirm before ordering?
Confirm the K5938-1 product number, required welding process, generator load, and whether your setup needs compatible leads, an electrode holder, a wire feeder, or other accessories.
